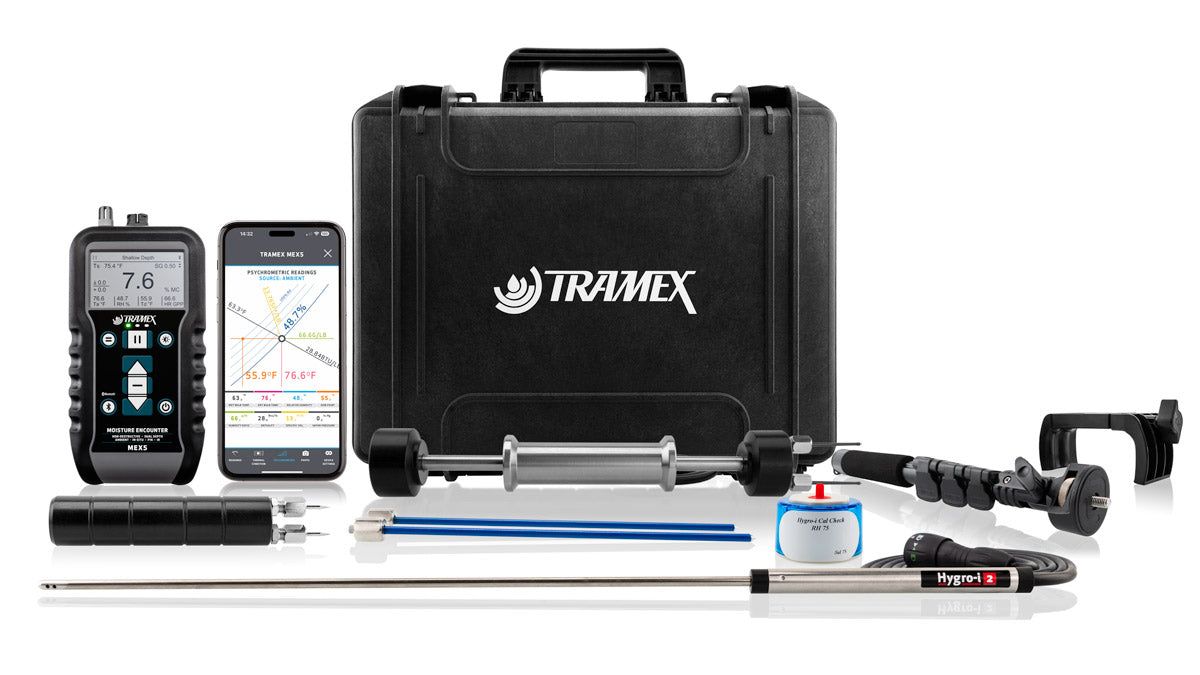

Tramex Building Survey Inspection Kit - BSIK
Moisture survey kit for building inspections
The Tramex Building Survey Inspection Kit provides the instruments and tools needed to conduct a thorough moisture and humidity inspection in various building materials such as drywall, wood, plaster, brick, ceramic tiles, resilient flooring, laminates and roofing and numerous building materials and air spaces.
The Moisture Encounter MEX5 moisture meter measures moisture content in wood and drywall and provides comparative readings in a variety of building materials.
The MEX5 moisture meter features dual depth measuring range. Deep Depth penetration of up to 1¼" (30mm) and Shallow Depth penetration of up to ⅜” (9mm). The dual depth readings of surface and core moisture can be compared to eliminate the influence of the substrate when testing coverings.
It also features a built-in hygrometer for ambient conditions and psychrometric values, an Infrared Surface Thermometer and incorporates the external RH probe for in-situ equilibrium RH readings, as well as the hand-held and hammer-action pin probes for wood, drywall, and WME readings. The insulated 200mm (7.8") pins and narrow 260mm (10”) RH probe allow for deep wall cavity and insulation pin probing.
Bluetooth connectivity to the Tramex Meters App allows for visualization of readings, moisture mapping and data reporting to mobile devices, to GeoTag test results, create, save and share photos, reports and charts, as well as see your meter screen on your phone when extending to hard to reach places.
The Tramex Building Survey Inspection Kit comes with an extension handle and a protective heavy-duty carrying case with die-cut foam lining.
- Moisture Encounter MEX5
- Heavy-duty pin-type electrode for drywall
- Hammer-action pin-type electrode
- Narrow Wand Relative Humidity Probe
- 7.8” (200mm) insulated pins for in-depth penetration using pin probe
- Calibration Check Salts for Relative Humidity probe.
- Extension Handle
Moisture Encounter MEX5 BSIK Specifications
| Size: | 7.1" x 3.4" x 1.6" (180mm x 85mm x 40mm) |
| Weight: | 10.22oz (290g) |
| Construction: | ABS Body |
| Power: | 2 x AALR6 ALKALINE (included) |
| Display: | Digital 2.3" x 1.4" (58mm x 35mm) |
| Depth of penetration: | Shallow signal: up to ⅜” (9mm) |
| Deep signal: up to 1¼" (30mm) |
Measuring range of Moisture Encounter MEX5:
| NDT Moisture content for Wood: | 0 → 30% MC |
| NDT Comparative for Building Materials: | 0 → 100 |
| Pin % MC Wood: | 6 → approx 50% MC |
| Pin % MC Drywall: | 0 → 8.5% MC |
| Relative Humidity: | 0 → 99% |
| (with optional Hygro-i2 ® probe): | Humidity accuracy: 0% → 99%RH +/- 2% @ 25°C / 77°F |
Relative Humidity Sensor specifications:
| Range: | 0 to 100%RH |
| Accuracy: | ±1.5%RH Range 0% to 80%RH ±2.0%RH Range 80% to 99%RH (@ 25ºC (77ºF)) |
| Resolution: | 0.1% over the complete range |
| Drift: | <0.25%RH per year |
Temperature Sensor specifications:
| Range: | -4ºF to 158ºF( -20°C to 70°C) |
| Accuracy: | ±0.1ºF Range -4ºF to 158ºF(±0.1 °C Range -20°C to 70°C) |
| Sensor Protection: | PTFE Film protects sensor opening from water & dust Drift: <0.04ºF (0.03ºC) per year |
| Drift: | <0.04ºF (0.03ºC) per year |
Specifications of Kit:
| Size: | 16.5” x 14.2” x 5.5” (42cm x 36cm x 14cm) |
| Weight: | 9.5lbs (4.3kg) |
| Power: | 2 x AALR6 ALKALINE (included) |
