MEX5 Tech Kit - BSITK
Compact kit for surveying building materials

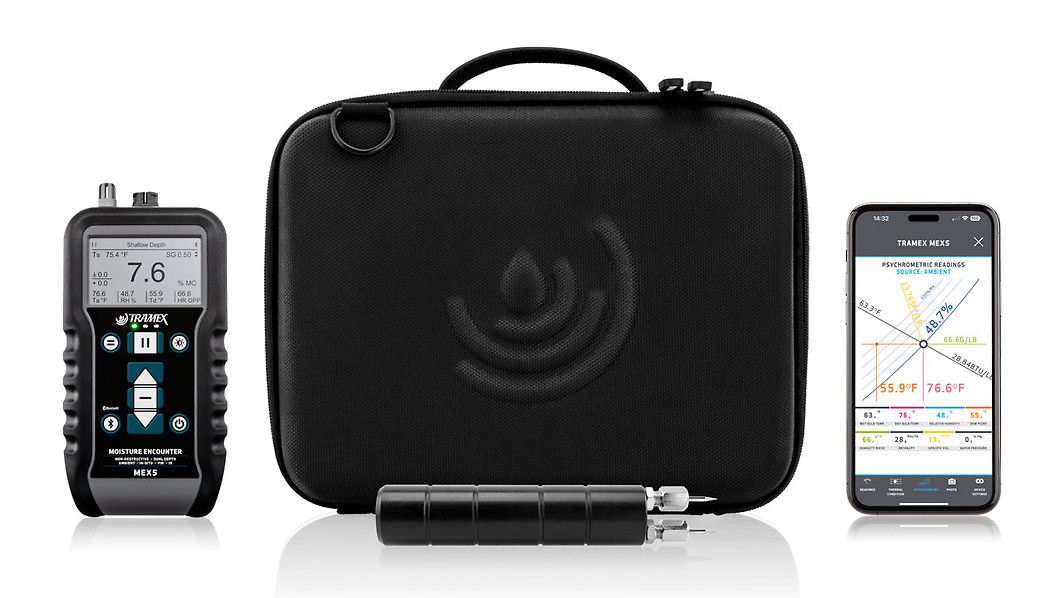

The Tramex Building Survey Inspection Tech Kit is a compact kit comprising of the Moisture Encounter MEX5 and a pin electrode and allows for both non-destructive and pin moisture content readings of drywall, wood, plaster, brick, ceramic tiles, resilient flooring, laminates and roofing and numerous building materials.
The Moisture Encounter MEX5 moisture meter measures moisture content in wood and drywall and provides comparative readings in a variety of building materials.
The MEX5 moisture meter features dual depth measuring range. Deep Depth penetration of up to 1¼" (30mm) and Shallow Depth penetration of up to ⅜” (9mm). The dual depth readings of surface and core moisture can be compared to eliminate the influence of the substrate when testing coverings.
It also features a built-in hygrometer for ambient conditions and psychrometric values, an Infrared Surface Thermometer as well as the hand-held probe for wood, drywall, and WME readings.
Bluetooth connectivity to the Tramex Meters App allows for visualization of readings, moisture mapping and data reporting to mobile devices, to GeoTag test results, create, save and share photos, reports and charts, as well as see your meter screen on your phone when extending to hard to reach places.
The Tramex Building Survey Inspection Tech Kit comes with a protective easy-travel case.
Moisture Encounter MEX5
| Size: | 7.1" x 3.4" x 1.6" (180mm x 85mm x 40mm) |
| Weight: | 10.22oz (290g) |
| Construction: | ABS Body |
| Power: | 2 x AALR6 ALKALINE (included) |
| Display: | Digital 2.3" x 1.4" (58mm x 35mm) |
| Depth of penetration: | Shallow signal: up to ⅜” (9mm) |
| Deep signal: up to 1¼" (30mm) |
Measuring range of Moisture Encounter MEX5:
| NDT Moisture content for Wood: | 0 → 30% MC |
| NDT Comparative for Building Materials: | 0 → 100 |
| Pin % MC Wood: | 6 → approx 50% MC |
| Pin % MC Drywall: | 0 → 8.5% MC |
| Relative Humidity: | 0 → 99% |
| (with optional Hygro-i2 ® probe): | Humidity accuracy: 0% → 99%RH +/- 2% @ 25°C / 77°F |
Specifications of Kit:
| Size: | 13.8" x 9.1" x 3.5" (350mm x 230mm x 90mm) |
| Weight: | 3.4lbs (1.55kg) |
| Power: | 2 x AALR6 ALKALINE (included) |
