Extech VPC300 Particle Counter and Thermo-Hygrometer

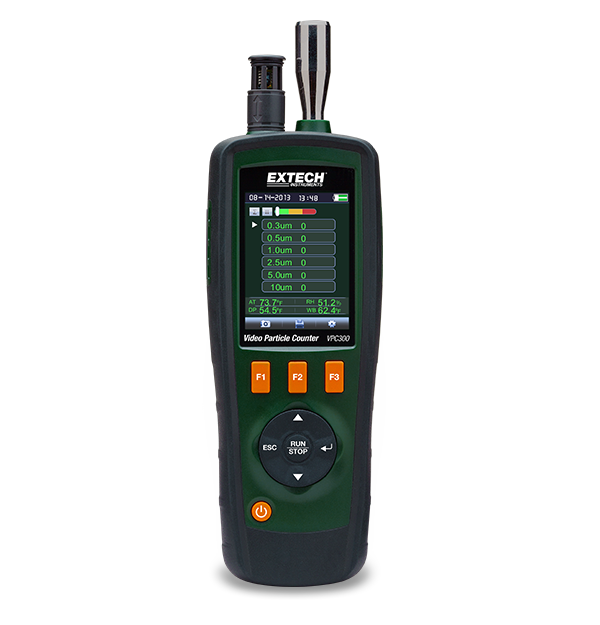

Extech VPC300
Video Particle Counter with Built-In Camera
The VPC300 is a Video Particle Counter with a built-in camera. It measures up to 6 channels of particle sizes plus air temperature and relative humidity, and captures videos and photos that are stored in internal memory or on a microSD card. Use the included software to generate reports with videos, photos and data points.
Complete with NIST-traceable calibration certificate, Universal AC Adapter/Charger with multiple plugs, USB cable, PC software, tripod, filter, 7.4V NiMH battery and a hard, protective case.
6-Channel Measurement
Simultaneously measure and display 6 channels of particle sizes (down to 0.3 µm), air temperature, humidity, dew point and wet bulb.
Built-In Camera
Built-in 320 × 240-pixel camera takes videos (3GP) and photo images (JPEG) and records them on a microSD memory card.
On-Board Memory
Store 5,000 records (date, time, counts, humidity, temperature, sample volumes, and location label) and 20 minutes of video.
Specifications
| General | |
| Air Temperature | -25°C to 60°C (-14°F to 140°F); Accuracy ±1°C to 2°F |
| Dew Point | 32°F to 122°F (0°C to 50°C) |
| Max Flow Rate | 0.1 ft³ (2.83 L per min) controlled by internal pump |
| Particle Size | 0.3, 0.5, 1.0, 2.5, 5.0, 10.0 µm |
| Readout Modes | Cumulative, Differential, Concentration |
| Relative Humidity | 0 to 100% |
| Relative Humidity Basic Accuracy | ±3% |
| Size [L × W × H] | 240 × 75 × 57 mm (9.4 × 3.0 × 2.2 in) |
| Wet Bulb | 33°F to 122°F (0°C to 50°C) |
| Additional Details | |
| Certifications | CE |
| Dimensions | 9.4 × 3 × 2.2" (240 × 75 × 57 mm) |
| Power | 1 × 7.4V NiMH battery |
| Warranty | 2 years |
| Weight | 1.26 lbs (570 g) |
