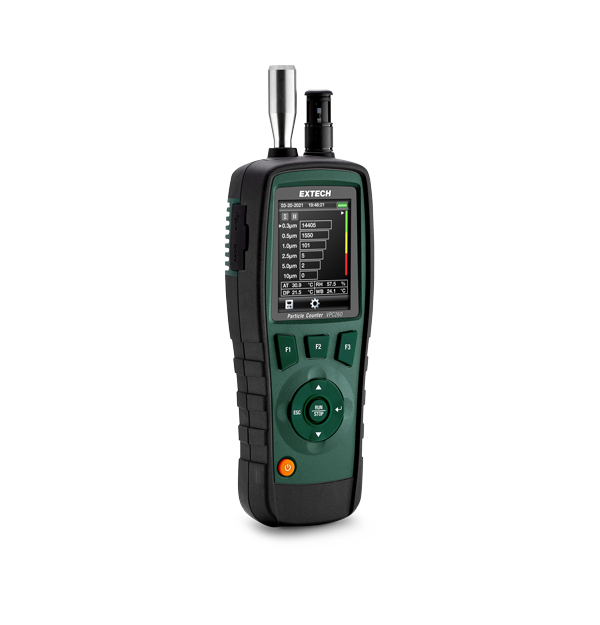

Extech VPC260 Particle Counter and Thermo-Hygrometer
$1,100.00
Pre-order
Ships in 1-2 weeks
1
Extech VPC260 Particle Counter and Thermo-Hygrometer
Product details
UPC: 793950400265
Brand: Extech
Extech VPC260
6-Channel Particle Counter
The VPC260 is a 6-channel particle counter for monitoring workplace environmental health and quality. Measure up to 6 channels of particle sizes plus air temperature, relative humidity, dew point, and wet bulb. Check indoor air quality for exhaust, smoke, respirable crystalline silica dust (RCS), airborne combustible dust, and other harmful air pollutants.
Monitor indoor air quality
Simultaneously measure and display 6 channels of particle sizes (down to 0.3 μm), air temperature, humidity, dew point and wet bulb.
Store up to 1,000 data sets
Export data in CSV format to a PC via USB cable for easy reporting and documentation.
Lightweight and ergonomic design
Easily operate the VPC260 with one hand for convenient air quality monitoring.
Specifications
| General | |
| Air Temperature | 0°C to 50°C (32°F to 122°F); Accuracy: ±1.8°F (±1.0°C) |
| Coincidence Loss | 10% @ 2,000,000 counts per ft³ |
| Counting Efficiency | 50% @ 0.3 µm (100% for particles >0.5 µm) |
| Dew Point | 0°C to 50°C (32°F to 122°F) |
| Max Flow Rate | 0.035 ft³/min (1.0 L/min) controlled by internal pump |
| Particle Size | 0.3 µm, 0.5 µm, 1.0 µm, 2.5 µm, 5.0 µm, 10 µm |
| Readout Modes | Cumulative, Differential, Concentration |
| Relative Humidity | 0 to 100% RH; Accuracy: ±3.5% RH (20% to 80% RH) |
| Size [L × W × H] | 238 mm × 73 mm × 50 mm (9.3 in × 2.8 in × 2.0 in) |
| Storage Capacity | 1000 data sets |
| Wet Bulb | 0°C to 50°C (33°F to 122°F) |
| Additional Details | |
| Certifications | CE, UKCA |
| Display | 2.8” TFT Color LCD Display |
| Power | 9 V DC / 2A
7.4 V lithium-ion battery |
| Warranty | 2 years |
| Weight | 448 g (0.988 lb) |
