EXTECH HD350 - Pitot Tube + Anemometer Diff Manometer

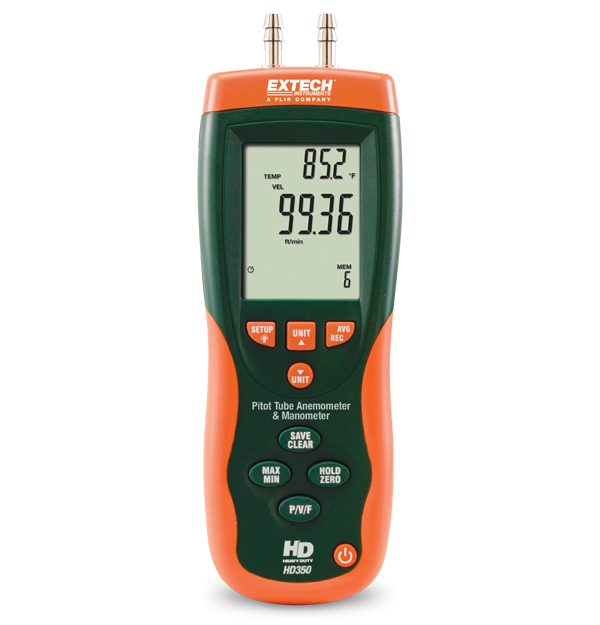

Extech HD350 Pitot Tube Anemometer + Differential Manometer
The Extech HD350 combines a Pitot tube anemometer and differential manometer in a single rugged instrument, giving restoration and HVAC pros a fast, accurate read on air velocity, air flow, and differential pressure. Measure differential pressure in five selectable units and use the included Pitot tube and dual connection hoses to capture air velocity and air flow on the job.
Built for real-world fieldwork, the HD350 offers data hold, auto power off, a zero function, and manual record/recall of up to 99 readings. The built-in USB port and included software make it easy to transfer and log your data. Backed by ±1% full-scale accuracy on air velocity and ±0.3% full-scale accuracy on pressure, it delivers dependable measurements you can stand behind.
Key Features
- Differential pressure measurement in 5 selectable units (inH₂O, mbar, mmH₂O, Pa, psi)
- Air velocity range: 200 to 15,733 ft/min (1 to 80 m/s)
- Air volume readout in CFM and CMM (0 to 99,999)
- Air temperature measurement: 32 to 122°F (0 to 50°C)
- Data hold, auto power off, and zero function
- Manual record/recall of up to 99 readings
- Built-in USB port with included software and cable
- Max pressure: 10 psi
- 3-year warranty
Includes
HD350 meter, Pitot tube with two 33.5" (85 cm) connection hoses, USB cable, software, 9V battery, and hard carrying case.
Specifications
| General | |
|---|---|
| AC Voltage | 0.01mV to 600V |
| Air Velocity (ft/min) | 200 to 15733 ft/min |
| Air Velocity (ft/min) Basic Accuracy | ±1% full scale |
| Air Velocity (ft/min) Max Resolution | 1 ft/min |
| Air Velocity (km/h) | 3.5 to 288.0 km/h |
| Air Velocity (km/h) Basic Accuracy | ±1% full scale |
| Air Velocity (km/h) Max Resolution | 0.1 km/h |
| Air Velocity (knots) | 2.0 to 154.6 knots |
| Air Velocity (knots) Basic Accuracy | ±1% full scale |
| Air Velocity (knots) Max Resolution | 0.1 knots |
| Air Velocity (m/s) | 1 to 80.00 m/s |
| Air Velocity (m/s) Basic Accuracy | ±1% full scale |
| Air Velocity (m/s) Max Resolution | 0.01 m/s |
| Air Velocity (mph) | 2.25 to 178.66 mph |
| Air Velocity (mph) Basic Accuracy | ±1% full scale |
| Air Velocity (mph) Max Resolution | 0.01 mph |
| Air Volume (CFM) | 0 to 99,999 |
| Air Volume (CFM) Basic Accuracy | ±3% of reading |
| Air Volume (CFM) Max Resolution | 0.001 |
| Air Volume (CMM) | 0 to 99,999 |
| Air Volume (CMM) Basic Accuracy | ±3% of reading |
| Air Volume (CMM) Max Resolution | 0.001 |
| Linearity/Hysteresis | ±0.29 full scale |
| Max Pressure | 10 psi |
| Pressure (inH₂O) | 20.07 inH₂O |
| Pressure (inH₂O) Basic Accuracy | ±0.3% full scale |
| Pressure (inH₂O) Max Resolution | 0.01 inH₂O |
| Pressure (mbar) | 50.00 mbar |
| Pressure (mbar) Basic Accuracy | ±0.3% full scale |
| Pressure (mbar) Max Resolution | 0.01 mbar |
| Pressure (mmH₂O) | 509.8 mmH₂O |
| Pressure (mmH₂O) Basic Accuracy | ±0.3% full scale |
| Pressure (mmH₂O) Max Resolution | 0.01 mmH₂O |
| Pressure (Pa) | 5000 Pa |
| Pressure (Pa) Basic Accuracy | ±0.3% full scale |
| Pressure (Pa) Max Resolution | 1 Pa |
| Pressure (psi) | 0.7252 psi |
| Pressure (psi) Basic Accuracy | ±0.3% full scale |
| Pressure (psi) Max Resolution | 0.0001 psi |
| Temperature (Air) | 32.0 to 122.0°F (0 to 50°C) |
| Temperature (Air) Basic Accuracy | ±3°F / 1.5°C |
| Temperature (Air) Max Resolution | 0.1° |
| Temperature (Type K) Max Resolution | -40 to 1832°F (-40 to 1000°C) |
| Additional Details | |
|---|---|
| Certifications | CE |
| Dimensions | 8.2 × 2.9 × 1.9" (210 × 75 × 50mm) |
| Power | 1 × 9V battery |
| Warranty | 3 years |
| Weight | 12oz (340g); 7.2oz (204g) |
