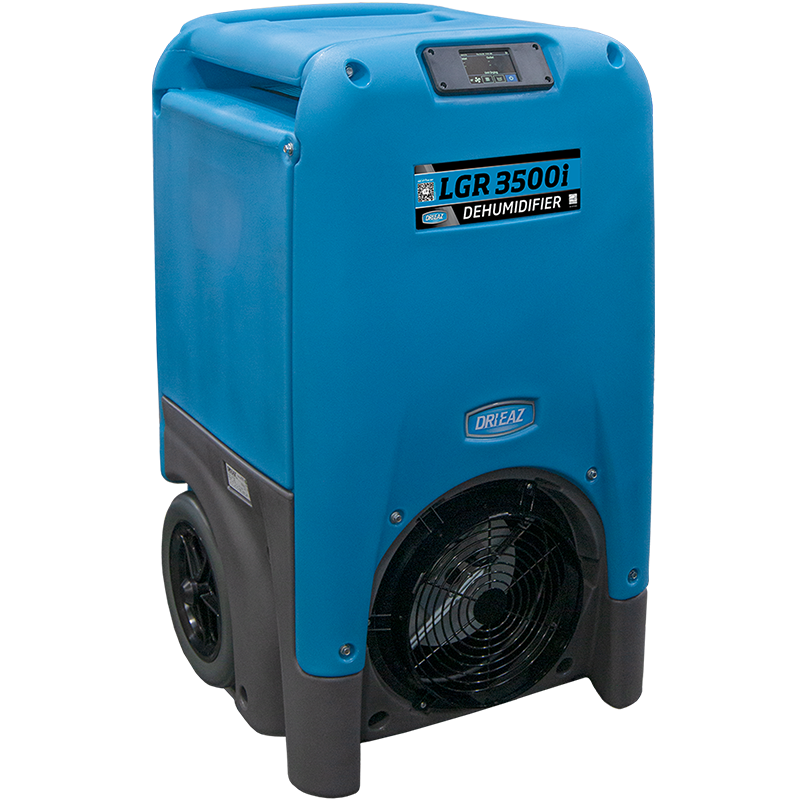

LGR 3500
Dehumidifier
170 Pts./Day AHAM - XXL Category
Removes 170 pints/day at AHAM and 270 pints/day at saturation; Xactimate XXL category performance for large-loss and commercial drying projects.
Up to 17,000 Cubic Feet
Controls humidity across spaces up to 17,000 cubic feet; sized for large commercial, institutional, and industrial drying environments.
Command Hub Remote Monitoring
Command Hub touchscreen displays real-time temp, RH, grain depression, and drying trends; monitor and control remotely 24/7 via the Dri-Eaz Command Center Pro app.
Auto-Adjusting Performance
Automatically adjusts operation to maximize performance in both high and low humidity conditions; no manual adjustment required as drying progresses.
Rotomolded Housing
Rugged rotomolded polyethylene housing that won't mar furnishings; built for heavy daily use and easy to maintain in the field.
Automatic Restart
Automatically restarts when power is restored after an outage; plain-English digital control panel messages - no error codes to look up.
| Spec | Detail |
|---|---|
| Part Number | 110133 |
| Water Removal (AHAM) | 170 pts./day (80.4 L/day) at 80°F/60% RH |
| Water Removal (Saturation) | 270 pts./day (127.8 L/day) at 90°F/90% RH |
| Process Air | 400 CFM max. (679.7 CMH) |
| Amps | 10.8A |
| Power | 115V, 60Hz |
| Dimensions (H x D x W) | 40.5 x 23 x 24 in. (103 x 58 x 61 cm) |
| Weight | 157 lbs. (71.2 kg) |
| Housing | Rotomolded polyethylene |
| Operating Range | 33°-100°F (1°-38°C) |
| Refrigerant | R32 |
| Power Cord | 25 ft. (7.6 m) |
| Drain Hose | 40 ft. (12.2 m) |
| Air Filter | 4-PRO filter (#121708) |
| Xactimate Code | WTRDHM>>>XXL |
Deploy the LGR 3500 on large-loss commercial and institutional jobs where maximum moisture removal capacity is required. Monitor remotely via Command Center Pro app; rely on automatic performance adjustment as conditions change; and use plain-English system messages on the digital panel for straightforward troubleshooting in the field.
