The powerful BDX-30 brings all the design elements and functionality of the BDX-20 and introduces Bluetooth® integration to the Navigator family with the Delmhorst EDGE™ app!  This exciting addition to the meter enhances your ability to ensure precise readings and export data from anywhere, including geotags and timestamps.  With the EDGE™ app, users can also select from 37 species and materials.  The BDX-30 brings today’s technology from the field to the office,  making the most challenging project easier, more efficient, and most accurate.

Features and Specifications

• Delmhorst EDGE™ app with Bluetooth® connectivity
• Large, custom display with auto backlight - easy to read under all conditions.
• Species/Materials – download up to 12 into the meter out of 37 available
• MC range:
  • 6%-60% Wood (Douglas Fir)
  • 0.1% -6% Drywall
  • 0-100 Reference scale*
• Wood temperature correction (°F/°C)
• Alarm set point - alerts to user-selected MC level
• On-screen statistics – High, Low, Average, Standard Deviation, View all readings
• Internal calibration check
• Pins/electrode correction (insulated or non-insulated)
• Integral contact pins max 5/16” penetration (use 2498/A-100)
• Compatible with any Delmhorst external electrode.
• Color-coded LED’s – adjustable through EDGE™ app
• Sturdy plastic carrying case – included
• Power – 2x AA batteries – Alkaline Energizer included
• “Low Batt” warning with audio
• Auto off timer. Set to 1 min, 4 min or 10 min
• QR code on meter for easy access to support materials
• Size: meter only - 8.65in (2.2mm) x 2.85in (72mm) x 1.55in (39mm); in carry case - 9.5in (241mm) x 6.5in (165mm) x 2.5in (64mm)
• Weight: meter only - 0.4.5oz (1.3g); in carry case - 18oz (510g)
• 2-year warranty on manufacturer’s defects. Bonus extended warranty with on-line registration.

*If you or your team are accustomed to the BD-2100 Reference scale, the EDGE™ app allows you to select that scale as well as the standard BDX Reference scale.

Includes

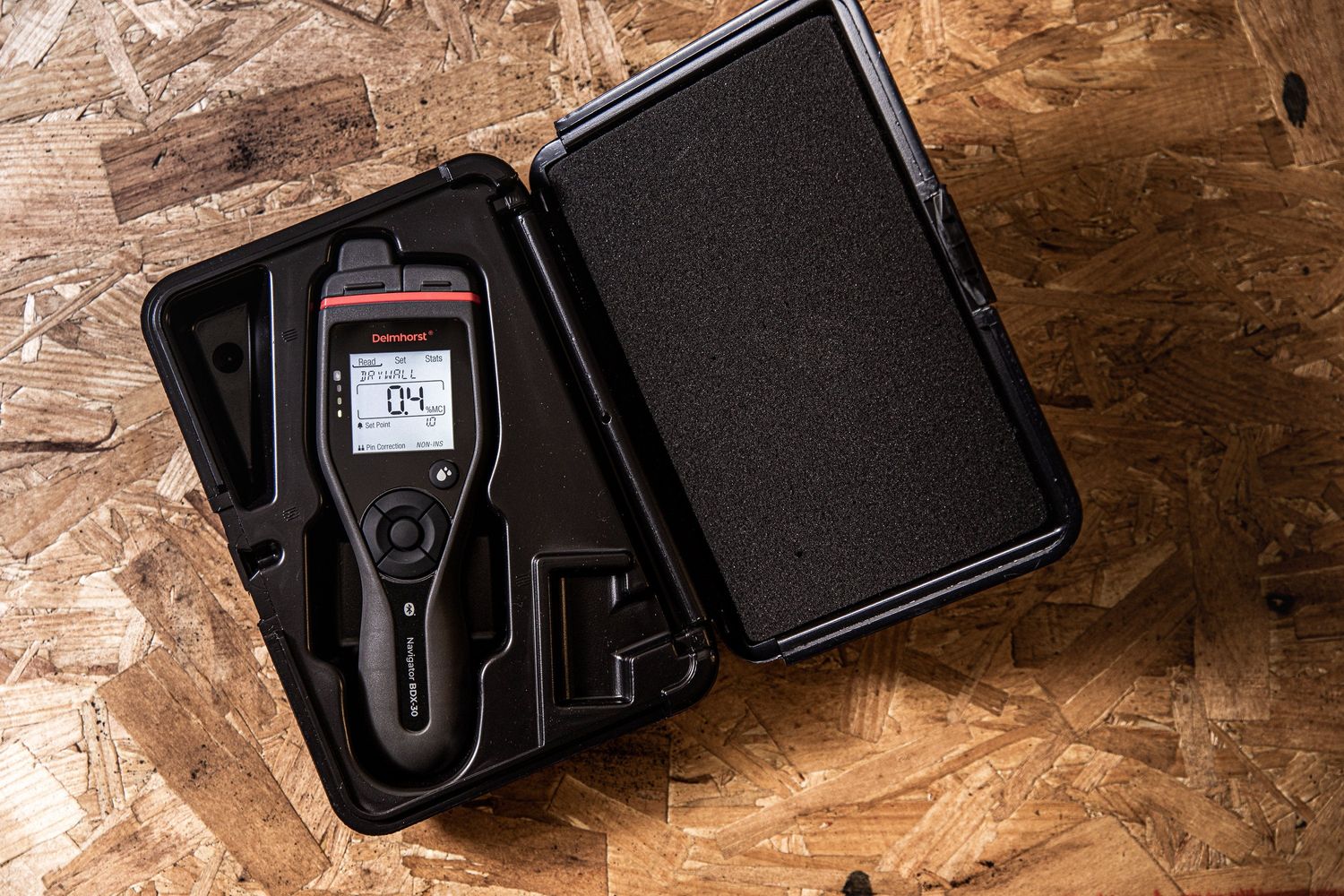

• BDX-30 Moisture Meter
• Carrying Case
