Water Damage Restoration Master Kit X – WDMK-X

For Evaluation and Monitoring of Water-Damage-Related Moisture Content and Humidity in Buildings

With Bluetooth and Accompanying App

The Tramex Water Damage Restoration Master Kit X is the topmost kit, including the top-of-the-range digital meters for moisture content and relative humidity testing and monitoring of ambient conditions, concrete, wood, tiles, drywall, plaster and numerous building materials after water damage.

Walls and Floors

Featuring the multi-functional Tramex MEX5 for dual-depth, non-invasive testing of moisture conditions in drywall, wood, plaster, brick, tiles, masonry, resilient flooring, laminates and roofing. The MEX5 shallow-depth feature allows for measurement up to ⅛" (9 mm) and the elimination of substrate influence on readings. The many advanced settings include a Baseline setting allowing for comparatives to the dry standard goal. The MEX5 measures moisture content in wood, and the pin-meters measure moisture content in drywall as well as WME comparative readings in various building materials.

Concrete

The Tramex CMEX5 digital concrete moisture meter provides instant, non-destructive quantitative moisture content measurement using Gravimetric testing as a baseline. The CMEX5 also incorporates a bayonet plug-in port for reusable Tramex Hygro-i2 RH probes for in-situ testing of concrete.

Ambient and In-Situ Air Conditions

The meters feature built-in hygrometers for ambient conditions, psychrometric values and enthalpy, a built-in infrared surface thermometer, and also incorporate external in-situ RH probes for in-situ equilibrium RH readings and ambient psychrometrics, temperature, GPP g/kg and dew point conditions. The reusable Hygro-i2 probes can also be used with the Tramex Feedback Datalogger to give live readings and time logs of relative humidity, temperature and dew point in the environment and in materials and air spaces.

Moisture Mapping

Bluetooth connectivity to the Tramex Meters App allows for visualization of readings, moisture mapping and data reporting to mobile devices, to GeoTag test results, and to create, save and share photos, reports and charts — as well as see your meter screen on your phone when extending to hard-to-reach places.

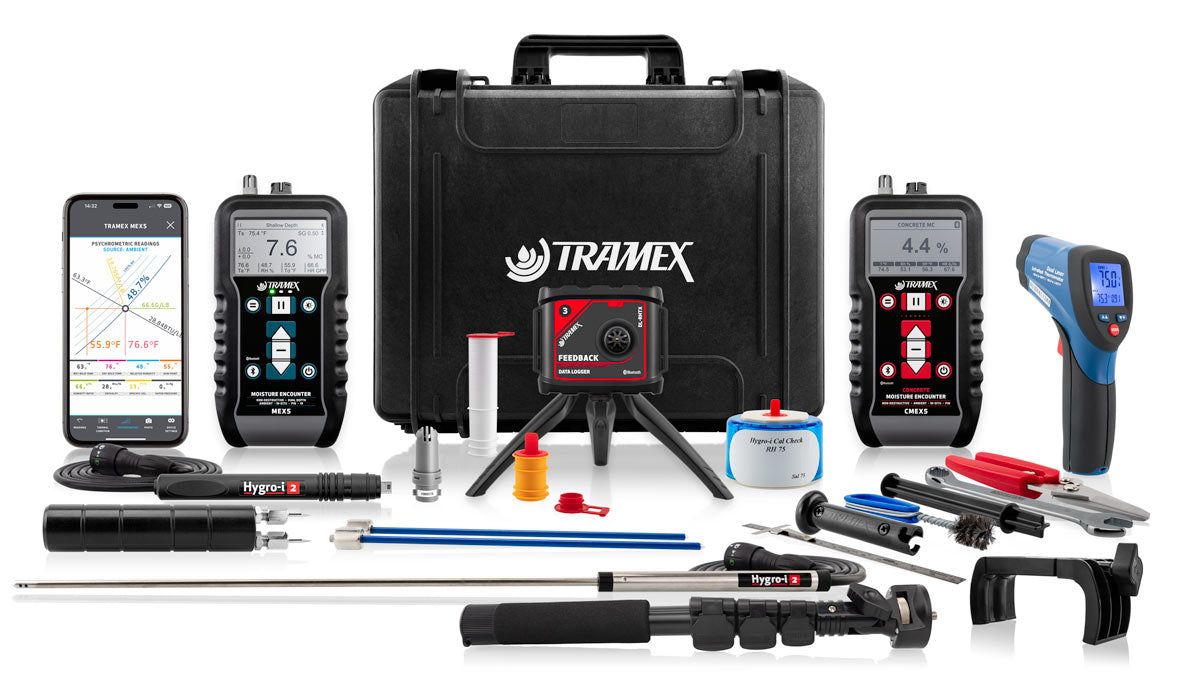

The Tramex Water Damage Restoration Master Kit X comes with an extension handle in a protective heavy-duty carrying case with die-cut foam lining.

Product Code: WDMK-X

Specifications

Concrete Moisture Encounter CMEX5 — Measuring Range

Depth of penetration in concrete	approx. 20 mm (¾")
Moisture content for concrete	0 → 6.9%
Comparative for gypsum floor screed	0 → 12
CM equiv. Anhydrite / Concrete	0 → 2.7 / 0 → 4.3
Reference scale	0 → 100
Relative humidity	0 → 99%
With optional Hygro-i2® probe	0% → 99% RH ±2% @ 25°C / 77°F
Moisture content for wood (with optional wood pin probes)	5 → 30%

Moisture Encounter MEX5 — Measuring Range

Depth of penetration	Shallow signal: up to ⅛" (9 mm) Deep signal: up to 1¼" (30 mm)
NDT moisture content for wood	0 → 30% MC
NDT comparative for building materials	0 → 100
Pin % MC — wood	6 → approx. 50% MC
Pin % MC — drywall	0 → 8.5% MC
Relative humidity	0 → 99%
With optional Hygro-i2® probe	Humidity accuracy: 0% → 99% RH ±2% @ 25°C / 77°F

Feedback Datalogger DL-RHTX — Measuring Range

Memory	100,000 data-point entries (samples of ambient RH, temperature and surface temperature)
Logging rate	Adjustable between 10 minutes and 1 hour
Transmission range	Up to 50 m (165 ft) line-of-sight
Bluetooth	BLE Bluetooth Low Energy 4.2 compliant

Relative Humidity Sensor

Range	0 to 100% RH
Accuracy	±1.5% RH (0–80% RH), ±2.0% RH (80–99% RH) @ 25°C (77°F)
Resolution	0.1% over the complete range
Drift	<0.25% RH per year

Temperature Sensor

Range	-4°F to 158°F (-20°C to 70°C)
Accuracy	±0.1°F (±0.1°C) over range
Sensor protection	PTFE film protects the sensor opening from water & dust
Drift	<0.04°F (0.03°C) per year

Infrared Thermometer IRT2

Temperature range	-58°F ~ 1202°F (-50 to 650°C)
Distance-to-spot ratio	D:S = 12:1
Display resolution	0.1°F (0.1°C) <1000; 1°C >1000
Accuracy (ambient 73–77°F / 23–25°C)	-58°F ~ 68°F (-50 ~ 20°C): ±4.5°F (2.5°C) 68°F ~ 572°F (20 ~ 300°C): ±1.0% ±1.8°F (1.0°C) 572°F ~ 1202°F (300 ~ 650°C): ±1.5%
Repeatability	-58 ~ 68°F (-50 ~ 20°C): ±2.3°F (1.3°C) 68 ~ 1202°F (20 ~ 650°C): ±0.5% or ±0.9°F (0.5°C)
Response time	150 ms
Spectral response	8 ~ 14 µm
Emissivity	Digitally adjustable from 0.10 to 1.0
Over-range indication	LCD shows “----”
Polarity	Automatic; minus (-) sign for negative polarity
Diode laser output	<1 mW, wavelength 630 ~ 670 nm, Class 2 laser product
Operating temp.	32 to 122°F (0 to 50°C)
Storage temp.	14 to 140°F (-10 to 60°C)
Relative humidity	10 ~ 90% RH operating, <80% RH storage
Power supply	9V battery, NEDA 1604A or IEC 6LR61 (or equivalent)
Safety	“CE” — complies with EMC

Kit Specifications

Size	20.5" x 18.9" x 5.9" (52cm x 48cm x 15cm)
Weight	10.8 lbs (4.9 kg)
Power	5 x AA batteries, 1 x 9-volt PP3 battery
