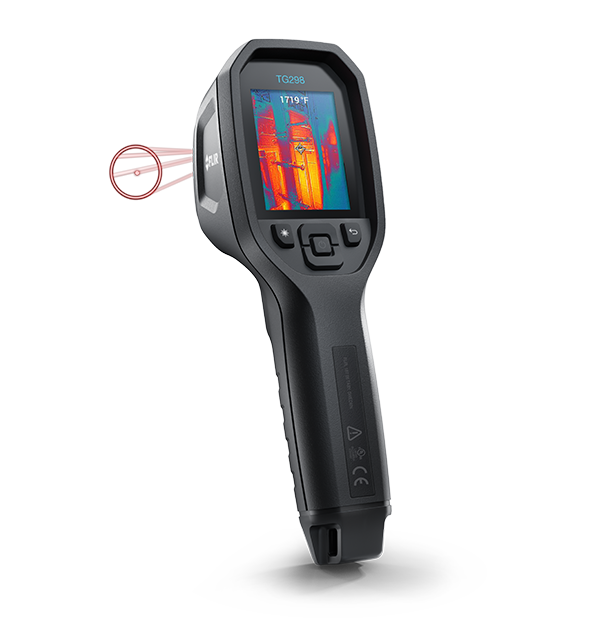

FLIR TG298
30:1 High-Temperature Spot IR Thermal Camera with Bullseye Laser
The FLIR TG298 is a one-of-a-kind industrial diagnostic tool that combines accurate temperature measurement with the ability to image up to 1080°C (1976°F). FLIR patented MSX® (Multi-Spectral Dynamic Imaging) enhancement improves image clarity by embossing visual scene detail onto full thermal images, while Super Resolution upscales images from 160 × 120 to 320 × 240 for superior detail. Ideal for high-temperature industrial work - measuring the heat of glass furnaces, kilns, and forges, along with a wide range of manufacturing applications - the TG298 lets you accurately target potential faults, troubleshoot repairs, and monitor processes. The FLIR METERLiNK® app enables remote monitoring of measurements and seamless documentation of inspection data, making it simple to produce comprehensive reports right in the field.
Key Features
- Accurately measure temperatures up to 1080°C (1976°F) with a 30:1 spot size ratio and bullseye laser pointer
- Diagnose problems quickly with FLIR patented MSX® image enhancement, and sharpen native thermal images with Super Resolution up to 320 × 240 (76,800 pixels)
- See clearly in dark or poorly lit areas with the built-in LED worklight
- Built tough - IP54 rated with a 2 m (6.6 ft) drop rating for reliable field durability
- Document and share inspection data remotely with the METERLiNK® app
Highlights
| IR Resolution | 160 × 120 pixels |
| Super Resolution | 320 × 240 (76,800 pixels) |
| Thermal Sensitivity (NETD) | <50 mK |
| Object Temperature Range | -25°C to 1080°C (-13°F to 1976°F) |
| Spot Size Ratio | 30:1 |
| Storage | 8 GB internal |
Specifications
Imaging & Optical
| IR Resolution | 160 × 120 pixels |
| Super Resolution | 320 × 240 (76,800 pixels) |
| Thermal Sensitivity (NETD) | <50 mK |
| Field of View (FOV) | 57° × 44° |
| Detector Type | Focal plane array (FPA), uncooled microbolometer |
| Detector Pitch | 12 µm |
| Spectral Range | 7.5–14 µm |
| Image Frequency | 8.7 Hz |
| Image Modes | MSX® (Multi-Spectral Dynamic Imaging), Visual with temperature reading |
| Color Palettes | Iron, Rainbow, White hot, Black hot, Arctic, Lava |
| Focus | Focus free |
| Minimum Focus Distance | 0.3 m (0.98 ft) |
| Minimum Measurement Distance | 0.26 m (0.85 ft) |
| Laser | Class 1 - indicates the temperature measurement area; button-activated |
| Built-in Digital Camera | Yes |
| Digital Image Enhancement | Yes |
| Non-Radiometric IR Video Recording | Yes |
Measurement & Analysis
| Accuracy | ±2.5% or 2.5°C (6°F) at 0°C to 50°C (33°F to 122°F) & 100°C to 400°C (213°F to 752°F)
±3% or 3°C (7°F) at -25°C to 0°C (-13°F to 32°F) & >400°C (>752°F) |
| Object Temperature Range | -25°C to 1080°C (-13°F to 1976°F) |
| Spot Size Ratio (D:S) | 30:1 |
| Emissivity Correction | Yes - 4 pre-set levels with custom adjustment (0.1–0.99) |
| Spot Meter | Center spot on/off |
User Interface
| Display | 320 × 240, 2.4 in color LCD |
Communication & Data Storage
| Image Storage Capacity | 8 GB internal |
| Memory Type | Internal |
| METERLiNK® | Yes |
| Saved Image Format | JPEG with spot temperature data |
| Time Lapse | Yes |
| Interface | USB 2.0, Bluetooth |
| USB | USB Type-C High Speed - data transfer / power |
Power
| Battery Type | Rechargeable Li-ion, 3.7 V |
| Battery Operating Time | 5 hours continuous scanning; 4.5 hours with laser on |
| Charging | In-camera; 3 hours to 90%, 4 hours to 100% |
| Charging Temperature | 0°C to 45°C (32°F to 113°F) |
Environmental & Certifications
| Encapsulation | IP54 (IEC 60529) |
| Drop | Designed for 2 m (6.6 ft) |
| Shock / Vibration | 25 g (IEC 60068-2-27) / 2 g (IEC 60068-2-6) |
| Operating Temperature | -10°C to 45°C (14°F to 113°F) |
| Storage Temperature | -30°C to 55°C (-22°F to 131°F) |
| Humidity | 0–90% RH (0°C to 37°C); 0–65% RH (37°C to 45°C); 0–45% RH (45°C to 55°C) |
| EMC | EN 61000-6-3; EN 61000-6-2; FCC 47 CFR Part 15 Class B |
| Radio Spectrum | ETSI EN 300 328; FCC Part 15.249; RSS-247 Issue 2; EN 301 489-1:2011; EN 301 489-17:2009 |
| Safety | CE / CB / EN 61010 / UL |
| Certifications | CE, CB, RCM, IEC 60825-1, FDA, UL, CEC, NRCan |
| Tripod Mounting | UNC ¼″-20 on handle bottom |
| Warranty | FLIR 2-10 Warranty |
General
| Form Factor | Pistol |
| Laser Pointer | Bullseye - indicates the size of the measurement area |
| Worklight | Built-in LED |
| Size (L × W × H) | 210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in) |
| Weight (battery included) | 0.394 kg (13.9 oz) |
| Package Includes | TG298 camera, wrist strap lanyard, pouch, USB Type-C cable, printed documentation |
