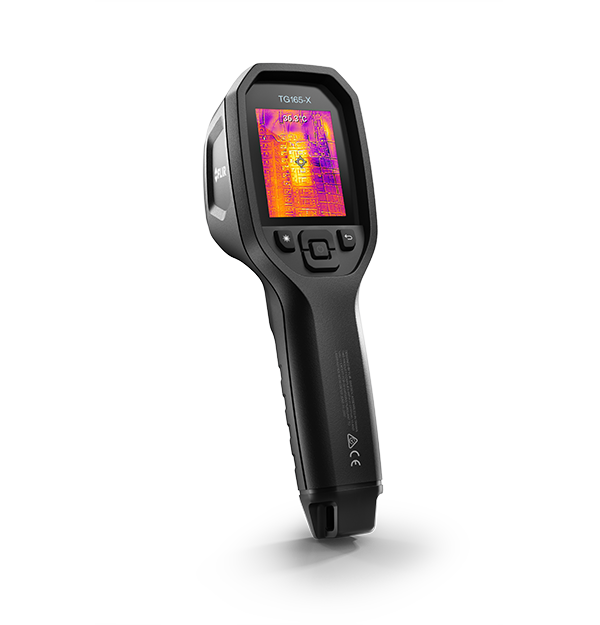

FLIR TG165-X

MSX® Thermal Camera

The FLIR TG165-X helps you visualize the hot and cold spots that can indicate electrical faults, mechanical breakdowns, or air and water leaks. This all-in-one, non-contact measurement and imaging tool displays temperature anomalies on screen, letting you inspect efficiently and pinpoint the source of problems faster than with a single-spot IR thermometer. See components clearly and even read labels thanks to FLIR patented MSX® image enhancement, which adds visual detail to full thermal images. The bullseye laser ensures you’re always targeting the right component for measurement, while easy-to-use buttons and settings help you complete the job quickly and stress-free. With internal storage for up to 50,000 images and a rechargeable Li-ion battery, the FLIR TG165-X is ready to go right out of the box.

Key Features

• Dramatically reduces inspection and diagnostic time
• Easily view live images on the 2.4-in. display and see into dark or hard-to-reach areas with the bright LED worklight
• Target the area you’re measuring using the bullseye laser pointer and capture thermal MSX® and visual images with a simple trigger-pull
• Speed inspections with a thermal view that tells you instantly whether a target is overheating, with measurements up to 300°C (572°F)

Specifications

Imaging & Optical

IR Resolution	80 × 60 pixels
Thermal Sensitivity (NETD)	<70 mK
Camera Resolution	2 MP (1600 × 1200 pixels)
Display Resolution	320 × 240 pixels
Field of View (FOV)	71° × 56°, adapts to the IR lens
Detector	Uncooled microbolometer, 7.5–14 µm
Detector Pitch	17 µm
Image Frequency	8.7 Hz
Image Modes	MSX® (Multi Spectral Dynamic Imaging), Visual
Color Palettes	Iron, Rainbow, Whitehot, Blackhot, Arctic, Lava
Focus	Fixed
Minimum Focus Distance	0.3 m (0.98 ft)
Minimum Measurement Distance	0.26 m (0.85 ft)
Laser	Class 1
Gallery	Yes
Camera Software Update	Via USB cable or SD card

Measurement & Analysis

Accuracy	50°C to 100°C (122°F to 212°F): ±1.5°C (±3°F) 0°C to 50°C (32°F to 122°F) & 100°C to 300°C (212°F to 572°F): ±2.5°C (±5°F) -25°C to 0°C (-13°F to 32°F): ±3°C (±7°F)
Object Temperature Range	-25°C to 300°C (-13°F to 572°F)
Distance to Spot Ratio (D:S)	24:1
Emissivity Correction	Yes — 4 pre-set levels with custom adjustment (0.1–0.99)
Spot Meter	Center spot on/off
Set-up Commands	Local adaptation of units, language, date & time formats; screen brightness (high, medium, low); gallery and image deletion

User Interface

Display Technology	TFT
Languages	Czech, Danish, Dutch, English, Finnish, French, German, Greek, Hungarian, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Simplified Chinese, Spanish, Swedish, Traditional Chinese, Turkish

Communication & Data Storage

Image Storage Capacity	Up to 50,000 images
Image File Format	JPEG with spot temperature in meta tag
Storage Media	eMMC 4 GB
Interface	USB Type-C High Speed — data transfer / power

Power

Battery Type	Rechargeable Li-ion, 3.7 V
Battery Operating Time	5 hours of scanning (medium brightness); 4.5 hours with laser on
Battery Charge Life	30 days minimum
Charging	In-camera; 4 hours to 90%, 6 hours to 100%
Charging Temperature	0°C to 45°C (32°F to 113°F)
Power Management	Adjustable: off, 5 min, 15 min, 30 min

Environmental & Certifications

Encapsulation	IP54 (IEC 60529)
Drop	Designed for 2 m (6.56 ft)
Shock / Vibration	25 g (IEC 60068-2-27) / 2 g (IEC 60068-2-6)
Operating Temperature	-10°C to 45°C (14°F to 113°F)
Storage Temperature	-30°C to 55°C (-22°F to 131°F)
Humidity	0–90% RH (0°C to 37°C); 0–65% RH (37°C to 45°C); 0–45% RH (45°C to 55°C)
Safety	CE / CB / EN 61010 / UL
Tripod Mounting	UNC ¼″-20

General

Form Factor	Pistol
Laser Pointer	Bullseye — indicates the size of the measurement area
Flashlight	LED, 100 lumens, on/off
Size (L × W × H)	210 × 64 × 81 mm (8.3 × 2.5 × 3.2 in)
Weight (battery included)	0.394 kg (13.9 oz)
