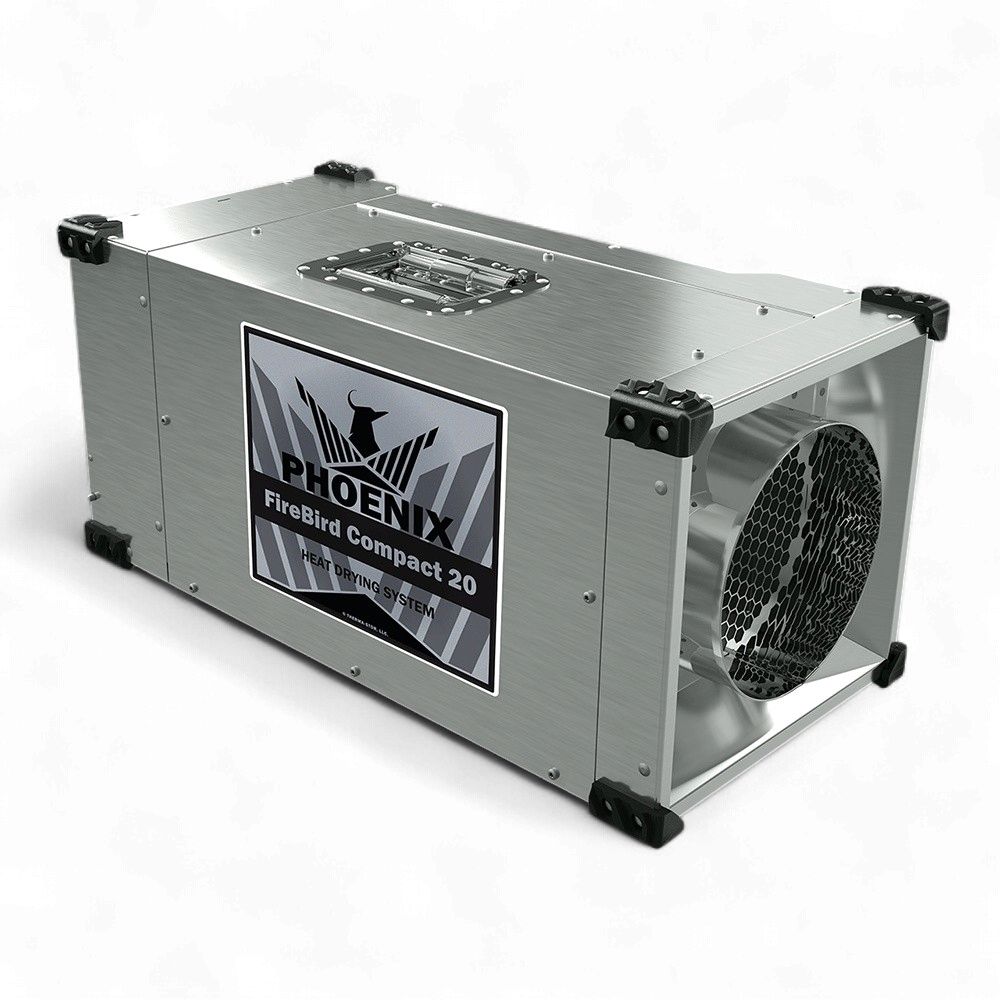

Firebird Compact 20 Heater, Phoenix
The Phoenix FireBird Compact 20 is a powerful, portable, and safe electric heater that puts instant heat exactly where you need it. Its 13" x 12.5" x 26" stainless steel cabinet fits virtually anywhere on the job site, so you can speed up the drying process in spaces where larger heaters will not go.
A remote thermostat kit is included with every unit, giving you control of the heat from anywhere in the drying space.
- Compact and lightweight at just 35 lbs.
- Durable stainless steel cabinet built for job site use
- Double-walled, screened enclosure for the heating elements
- Up to four 12 amp heater circuits, each adding 5,000 BTU, so you can scale heat to the power available
- Connects to common 15A / 120 VAC outlets
- Internal temperature cutouts help prevent overheating
- Phoenix remote thermostat with 25' connecting wire included
- MERV 13 mini pleated filter
- 8" flex-duct connections on both intake and supply
- Stackable for easy storage and transportation
- Xactimate code: WTRHTAM
The FireBird Compact 20 delivers up to 20,000 BTUs of instant heat from a cabinet small enough to carry in one hand. Set it up wherever heat is needed to speed up the drying process, then stack the units for transport when the job is done.
Multiple power connections let you run the heater from standard 15A / 120 VAC outlets. Each circuit adds 5,000 BTU and about 17°F of temperature rise, up to 20,000 BTU and a 70°F temperature rise at 250 CFM with all four circuits connected.
Internal temperature cutouts keep the FireBird from overheating an area, while the included remote thermostat kit lets you control the heat from anywhere in the drying space.
- Phoenix FireBird Compact 20 heater
- Phoenix remote thermostat kit with 25' connecting wire
Power cords and ducting are not included.
| General | |
| Part Number | 4033450 |
| Xactimate Code | WTRHTAM |
| Power | |
| Electrical | 120 VAC, 60 Hz, 1 Phase |
| Heater Circuits | Up to 4, at 12 Amps per circuit |
| Per Circuit | 5,000 BTU, 17°F temperature rise |
| Power Cord | Not included |
| Performance | |
| Heat Output | 5,000 to 20,000 BTU |
| Airflow | 250 CFM |
| Temperature Rise | 17°F to 70°F |
| At Maximum Heat | 20,000 BTU with 70°F temperature rise at 250 CFM |
| Filtration and Ducting | |
| Filter | Mini Pleated Media, MERV 13 |
| Intake Ducting | 8" Flex-Duct |
| Supply Ducting | 8" Flex-Duct |
| Dimensions and Weight | |
| Width | 13" |
| Height | 12.5" |
| Depth | 26" |
| Weight | 35 lbs. |
