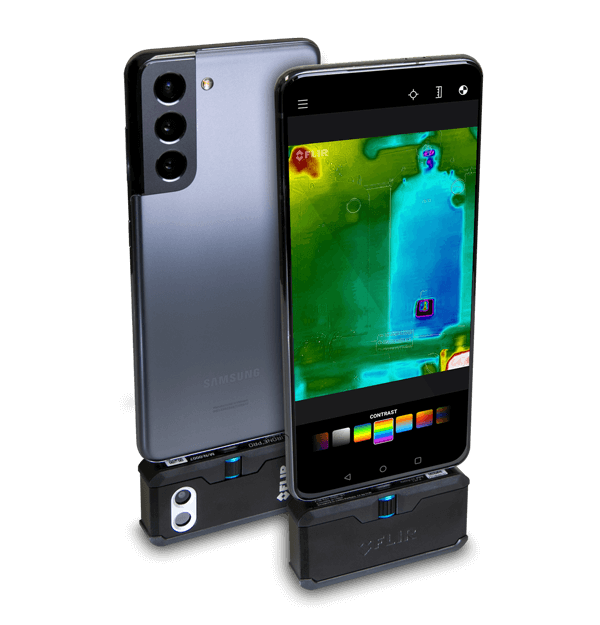

FLIR One Thermal Camera for Android Smartphones
SKU 10420
$429.00
In stock: 1 available
1
FLIR One Thermal Camera for Android Smartphones
Product details
UPC: 812462024155
Brand: FLIR
FLIR Thermal Imaging
FLIR One Pro
Pro-Grade Thermal Camera for Android® Smartphones
Note on Compatibility
We offer FLIR One Pro models to work with various combinations of operating system (iOS or Android) and connector type (USB-C, Lightning, Micro-USB). Please check your phone model and connector type before purchase.
This device is compatible with Android® smartphones with USB-C.
The FLIR One® Pro helps you find invisible problems faster than ever, whether you’re inspecting electrical panels, troubleshooting mechanical systems, looking for HVAC problems, or finding water damage. This FLIR One Pro-Series camera offers 4x the native resolution of the FLIR One (formerly FLIR One Gen 3), for sharper image clarity that’s further enhanced by the revolutionary FLIR VividIR™. Measure temperatures more than 3x higher than any FLIR One model - up to 400°C (752°F) - with a sensitivity that detects temperature differences down to 70 mK. Packed with powerful measurement tools, the FLIR One Pro will work as hard as you do.
See More Detail
With its 19,200-pixel resolution - a 4x improvement over the FLIR One (formerly FLIR One Gen 3) - and VividIR, FLIR One Pro gives you the ability to see more detail when it matters most.
Measure Hotter, Measure More
Measure temperatures up to 400°C (752°F) - compared with a maximum of 120°C (248°F) for the FLIR One Gen 3 - with up to three spot temperature meters and six temperature regions of interest.
Built For The Jobsite
Built to take the abuse that working on a jobsite dishes out every day, FLIR One Pro is rated to take a drop from 1.8 meters and is built to last.
Specifications
| Highlighted | |
| Thermal Resolution | 160 × 120 (native resolution); 480 × 360 (super resolution) |
| Battery Life | Approximately 1 hr |
| Object Temperature Range | -20°C – 120°C (-4°F – 248°F) and 0°C – 400°C (32°F – 752°F) |
| Model | FLIR One Pro – Android (USB-C) |
| Accuracy | ±3°C or ±5%, typical percent of the difference between ambient and scene temperature. Applicable 60 s after start-up when the unit is within 15°C – 35°C and the scene is within 5°C – 120°C. |
| Operating Temperature | 0°C – 35°C (32°F – 95°F); battery charging 0°C – 30°C (32°F – 86°F) |
| Spot Meter | Hottest, Coldest and 3 spot measurement |
| Imaging & Optical | |
| Adjustable MSX Distance | 0.3 m – Infinity |
| FLIR Screen-EST Mode | No |
| Focus | Fixed 15 cm – Infinity |
| Frame Rate | 8.7 Hz |
| General Description | Thermal and Visual Cameras with MSX |
| HFOV / VFOV | 50° ± 1° / 43° ± 1° |
| Palette | Gray (white hot), Hottest, Coldest, Iron, Contrast, Arctic, Lava and Color Wheel |
| Shutter | Automatic / Manual |
| Thermal Resolution | 160 × 120 (native resolution); 480 × 360 (super resolution) |
| Thermal Sensitivity / NETD | 70 mK |
| Thermal Sensor | Pixel size 12 µm, 8 – 14 µm spectral range |
| Video & Still Image Display/Capture | Saved as 1440 × 1080 |
| Visual Resolution | 1440 × 1080 |
| Power | |
| Battery Charge Time | 40 min |
| Battery Life | Approximately 1 hr |
| Measurement & Analysis | |
| Accuracy | ±3°C or ±5%, typical percent of the difference between ambient and scene temperature. Applicable 60 s after start-up when the unit is within 15°C – 35°C and the scene is within 5°C – 120°C. |
| Object Temperature Range | -20°C – 120°C (-4°F – 248°F) and 0°C – 400°C (32°F – 752°F) |
| Spot Meter | Hottest, Coldest and 3 spot measurement |
| General | |
| Battery Charge Monitor | 0 – 100% |
| Dimensions (H x W x D) | 68 × 34 × 14 mm (2.7 × 1.3 × 0.6 in) |
| Model | FLIR One Pro – Android (USB-C) |
| Weight | 36.5 g |
| Environmental & Certifications | |
| Certifications | RoHS, CE/FCC, CEC-BC, EN61233 |
| Drop Test | Drop from 1.5 m |
| Emissivity Settings | Matte: 95%, Semi-Matte: 80%, Semi-Glossy: 60%, Glossy: 30% |
| Non-Operating Temperature | -20°C – 60°C (-4°F – 140°F) |
| Operating Temperature | 0°C – 35°C (32°F – 95°F); battery charging 0°C – 30°C (32°F – 86°F) |
| Communication & Data Storage | |
| Capture Modes | Video, Still image |
| Charging | Female USB-C (5V/1A) |
| Connector | OneFit™ connector, adjustable height |
| File Formats | Radiometric JPG, MPEG-4 (file format MP4) |
| Video | Male USB-C |
