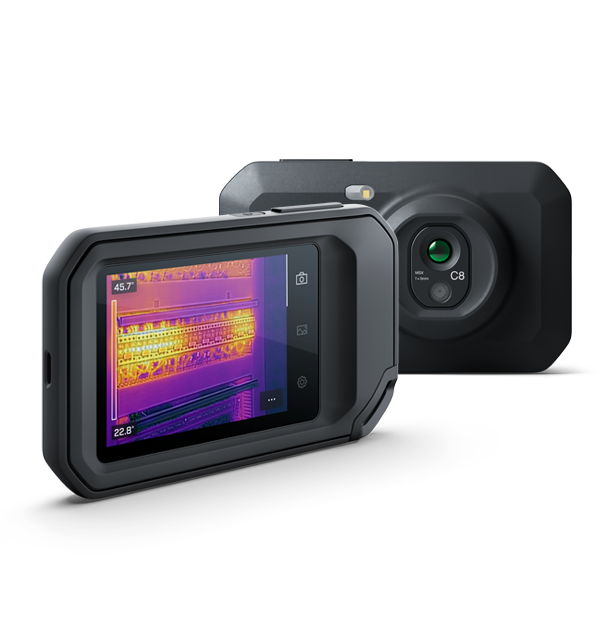

FLIR C8 Compact Thermal Imaging Camera
The FLIR C8 packs professional-grade thermal imaging into a compact, pocket-sized camera. A 320 x 240 (76,800-pixel) true thermal detector delivers the resolution and sensitivity you need to pinpoint moisture intrusion, missing insulation, air leaks, and electrical or mechanical faults fast, then document them on the spot. FLIR's patented MSX detail enhancement overlays visible-light detail onto the thermal image, so problem areas are easy to locate and interpret without guesswork.
Built-in FLIR Ignite cloud connectivity uploads images automatically for secure storage, standardized reporting, and easy sharing with your team or clients. Every C8 includes a 12-month FLIR Ignite Pro subscription, camera onboarding, and IR Fundamentals training from FLIR Academy.
Key Features
320 x 240 True Thermal Resolution
76,800 pixels of real thermal data for faster, more accurate fault and anomaly detection.
Patented MSX Detail Enhancement
Overlays visible-light detail onto the thermal image for instant, easy interpretation.
3.5" Touchscreen, 5 MP Camera & LED Flashlight
Auto-orienting color touchscreen, integrated 5 MP visual camera, and built-in LED flashlight for low-light work.
Wide Temperature Range
Measures from -20°C to 450°C (-4°F to 842°F) with ±2°C accuracy.
FLIR Ignite Cloud Connectivity
Automatic image upload, secure storage, and standardized reporting over Wi-Fi.
Pocket-Sized & Rugged
Just 0.42 lb, IP54-rated, and designed to survive a 2 m (6.5 ft) drop.
Specifications
| Spec | Detail |
|---|---|
| IR Resolution | 320 x 240 pixels (76,800) |
| Thermal Sensitivity (NETD) | <50 mK |
| Object Temperature Range | -20°C to 450°C (-4°F to 842°F) |
| Accuracy | ±2°C (0–100°C); ±2% (100–450°C) |
| Field of View | 35° x 27° |
| Spectral Range | 7.5 to 13 µm |
| Detector | Uncooled microbolometer, 12 µm pitch |
| Image Frequency | 9 Hz |
| Visual Camera | 5 MP, fixed focus, digital zoom 1–4x |
| Image Modes | Thermal, Visual, MSX, Picture-in-Picture |
| Display | 3.5 in. capacitive touchscreen, auto-orienting |
| Measurement Tools | Spot, box (max/min), isotherm |
| Connectivity | Wi-Fi 802.11 a/b/g/n, Bluetooth 5.0, USB-C 2.0 |
| Image Storage | Built-in, >5,000 image sets |
| Battery | Built-in Li-Ion, ~3 hr run, ~2 hr USB-C charge |
| Environmental | IP54; 2 m (6.5 ft) drop; operating -10°C to 50°C |
| Size / Weight | 138 x 84 x 34 mm (5.4 x 3.3 x 0.94 in) / 0.42 lb |
| Tripod Mount | UNC ¼″-20 |
| Part Number | 18801-0101 |
What's in the Box
FLIR C8 camera, 12-month FLIR Ignite Pro subscription, wrist strap lanyard, protective pouch, USB-C cable, and printed documentation. Backed by FLIR's 2-year battery and 10-year detector warranty.
Questions or need it as part of a package? Let us know!
