Select temperature conditions for full control over your drying installation. Provides live feedback on Air In and Air Off temperatures; with a maximum air temperature limit setting.
DBK's electrically insulated PTC heating technology automatically adjusts heater power to suit the environment. If airflow stops or a blockage occurs, the unit reduces heater power to protect itself.
Live heater power display shows how many heater banks are running. Energy usage and temperature differentials are displayed graphically over a 7-day period.
Built-in hours run and kWh meters track energy consumption across jobs. Machine life data and factory diagnostics are also accessible directly on the unit.
Automatically detects loss of air movement and adjusts heater power accordingly. Compatible with any air mover; the unit self-regulates based on the volume of airflow provided.
Built-in current limiter allows the unit to operate in situations where reduced power is available on site; keeping the job running without tripping circuits.
Connects to Drymatic Mat Systems, 4-Port adaptor, 12-Port adaptor, or 90° adaptor to channel heated airflow into kitchen cabinetry, cavity walls, subfloors, ceiling voids, and more.

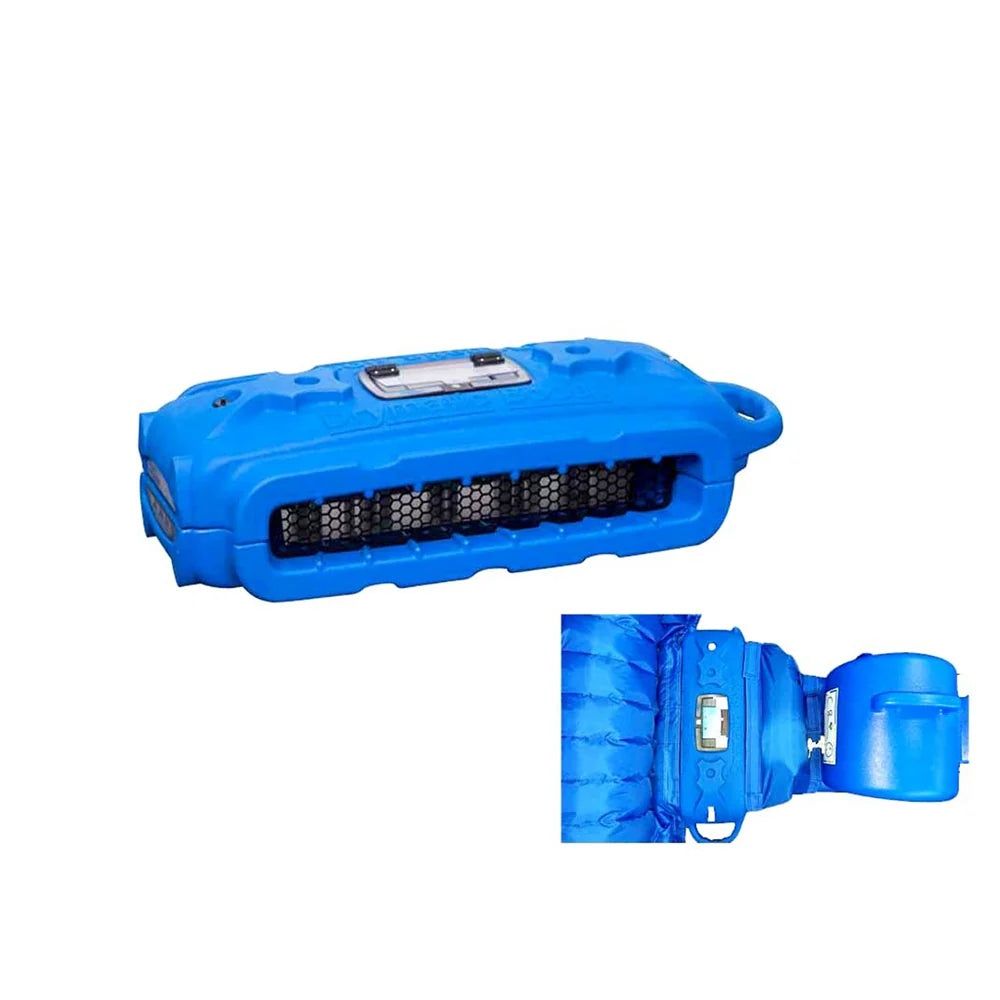

At 17 lbs with a rotomolded housing, the Boost Bar is easy to transport. Maximum amp draw of 11.6A on a single plug; stackable for efficient vehicle loading.
Remove four retaining screws and the unit splits into two sections for straightforward cleaning and maintenance.
Select your preferred language (English or French) and temperature unit (°F or °C) directly on the unit.
| Spec | Detail |
|---|---|
| Part Number | FGPH109 |
| Operating Voltage | 120V 60Hz |
| Maximum Current | 11.6A |
| Dimensions | 27 x 12 x 8" |
| Weight | 17 lbs |
| Construction | Rotomolded Housing |
| Operating Temperature | -14°F to 122°F |
| Maximum Air-Off Temperature | 122°F |
| Storage Temperature | -4°F to 122°F |
| Xactimate Codes | WTRHTAM + WTRDRY |
The Boost Bar works with any air mover; automatically self-regulating heater power based on the volume of airflow provided. For targeted structural drying, connect it to any Drymatic Mat System, 4-Port adaptor, 12-Port adaptor, or 90° adaptor to channel heated airflow into kitchen cabinetry, cavity walls, subfloors, ceiling voids, and more.
